ANSI C

修改啟動黨，加入tcc。

set path_portablegit=%Disk%:\Portablegit\bin;
set path_julia=%Disk%:\julia-1.5.2\bin;
set path_tcc=%Disk%:\tcc\;

path=%Disk%:;%path_python%;%path_portablegit%;%path_julia%;%path_tcc%;%path%;

執行下列程式碼。

/* Runge Kutta for a set of first order differential equations */

#include <stdio.h>
#include <math.h>

#define N 2 /* number of first order equations */
#define dist 0.1 /* stepsize in t*/
#define MAX 30.0 /* max for t */

FILE *output; /* internal filename */
FILE *output1; /* internal filename */
// 利用 pipe 呼叫 gnuplot 繪圖
FILE *pipe;

void runge4(double x, double y[], double step); /* Runge-Kutta function */
double f(double x, double y[], int i); /* function for derivatives */

void main(){

  double t, y[N];
  int j;

  output=fopen("osc.dat", "w"); /* external filename */
  output1=fopen("osc1.dat", "w"); /* external filename */

  y[0]=1.0; /* initial position */
  y[1]=0.0; /* initial velocity */

  //fprintf(output, "0\t%f\n", y[0]);

  for (j=1; j*dist<=MAX ;j++) /* time loop */{

    t=j*dist;
    runge4(t, y, dist);
    fprintf(output, "%f\t%f\n", t, y[0]);
    fprintf(output1, "%f\t%f\n", t, y[1]);
  }

  fclose(output);
  fclose(output1);

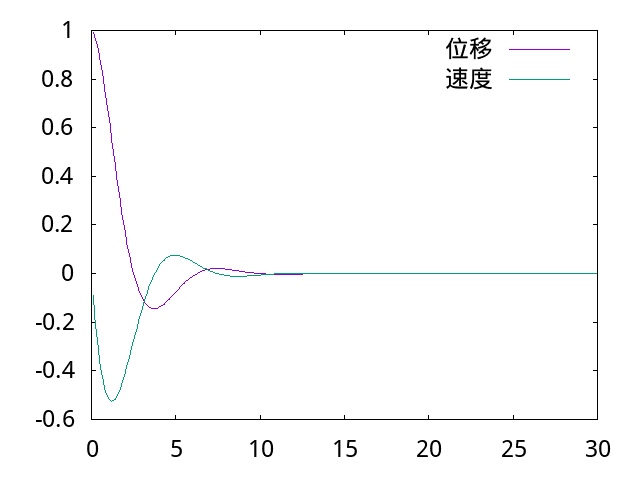

  pipe = popen("gnuplot -persist","w");
  //fprintf(pipe,"set term png enhanced font \"v:/fireflysung.ttf\" 18 \n");
  fprintf(pipe,"set term png enhanced font \"y:/wqy-microhei.ttc\" 18 \n");
  //fprintf(pipe,"set yrange [68:70]\n");
  fprintf(pipe,"set output \"test.png\"\n");
  fprintf(pipe, "plot \"osc.dat\" title \"位移\" with lines, \"osc1.dat\" title \"速度\" with lines\n");
  fprintf(pipe,"quit\n");

  fprintf(pipe,"quit\n");
  pclose(pipe);
}

void runge4(double x, double y[], double step){

  double h=step/2.0, /* the midpoint */
  t1[N], t2[N], t3[N], /* temporary storage arrays */
  k1[N], k2[N], k3[N],k4[N]; /* for Runge-Kutta */
  int i;

  for (i=0;i<N;i++){

    t1[i]=y[i]+0.5*(k1[i]=step*f(x,y,i));
  }

  for (i=0;i<N;i++){

    t2[i]=y[i]+0.5*(k2[i]=step*f(x+h, t1, i));
  }

  for (i=0;i<N;i++){

    t3[i]=y[i]+ (k3[i]=step*f(x+h, t2, i));
  }

  for (i=0;i<N;i++){

    k4[i]= step*f(x+step, t3, i);
  }

  for (i=0;i<N;i++){

    y[i]+=(k1[i]+2*k2[i]+2*k3[i]+k4[i])/6.0;
  }
}

double f(double x, double y[], int i){

  if (i==0)
    x=y[1]; /* derivative of first equation */
  if (i==1)
    x=-y[0]-0.5*y[1];
  return x;
}

阻尼=1

file
